SystemVerilog Verification Environment/TestBench for Memory Model

Table of Contents

The steps involved in the verification process are,

Before writing/creating the verification plan need to know about design, so will go through the design specification.

* In this example Design/DUT is Memory Model.

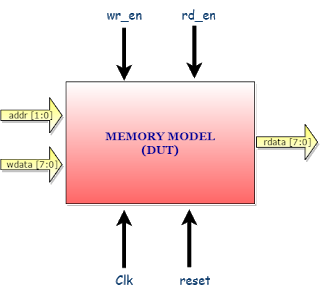

Memory Model Design Specification

Signal Name	Direction wrt to Design	Description
clk	input	clock signal
reset	input	reset signal
addr[1:0]	input	Address signal on which the address is specified
wr_en	input	write enable signal, indicates the write operation
rd_en	input	read enable signal, indicates the read operation
wdata[7:0]	input	wdata signal for write data
rdata[7:0]	output	rdata signal for read data

Operations:

Write Operation:
address, wr_en, and wdata should be driven at the same clock cycle.

Read Operation:
address and rd_en should be driven on the same clock cycle, Design will respond with the data in the next clock cycle.

Design Features,

The verification plan is the list of scenarios need to be verified.

let’s list the few scenarios,

Write and Read to a particular memory location
- Perform write to any memory location, read from the same memory location, read data should be the same as written data
Write and Read to all memory locations
- Perform write and read to all the memory locations (as the address is 2bit width the possible address are 2‘b00, 2’b01, 2’b10, and 2’b11)
Default memory value check
- Check default memory values. (before writing any locations, do read operation we should get default values as ‘hFF)
Reset in Middle of Write/Read Operation
- Assert reset in between write/read operation and check for default values. (after writing to few locations assert the reset and perform read operation, we should get default memory location value ‘hFF)

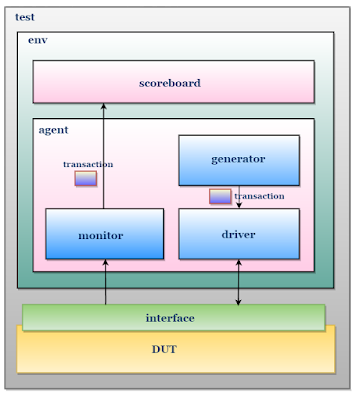

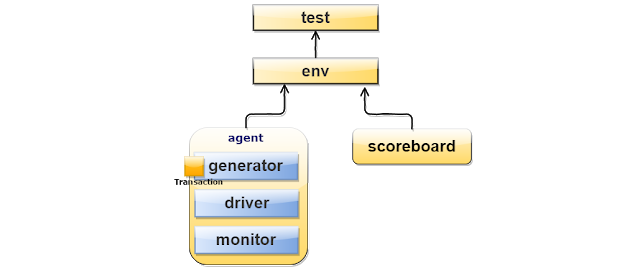

For simplicity will write the two Testbenches,
